All Products – Atom

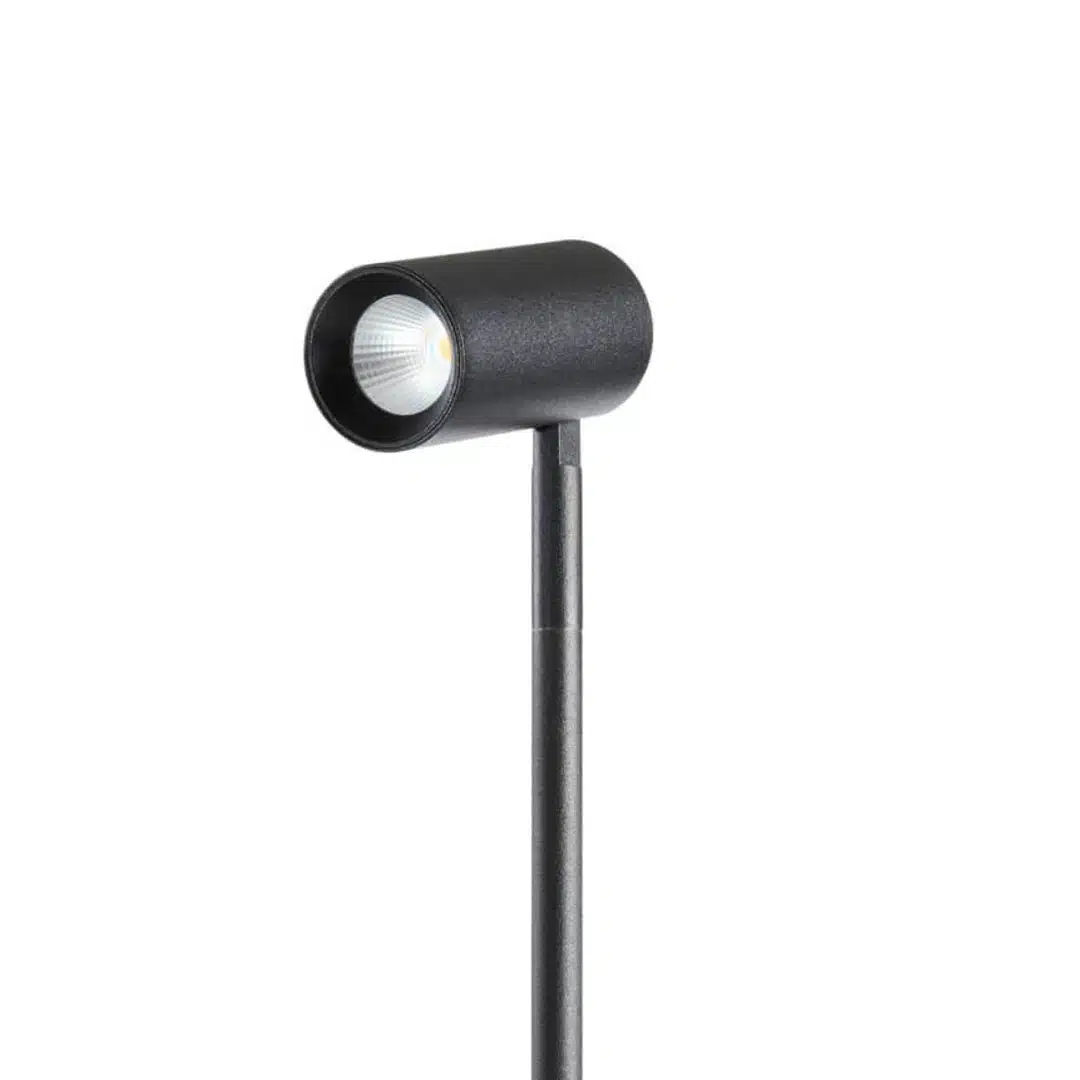

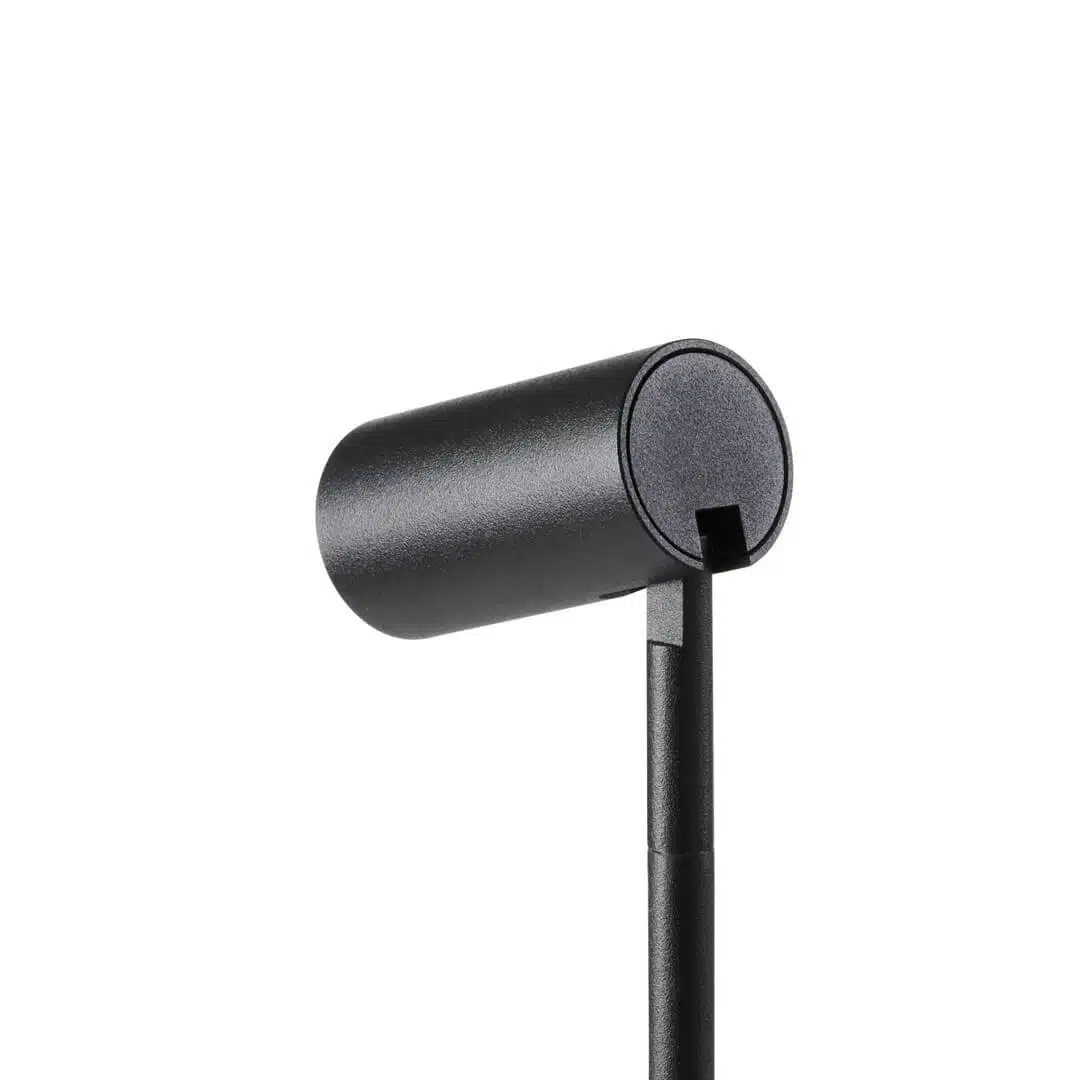

Spot Pole Module 7W
Minimalistic Modular System

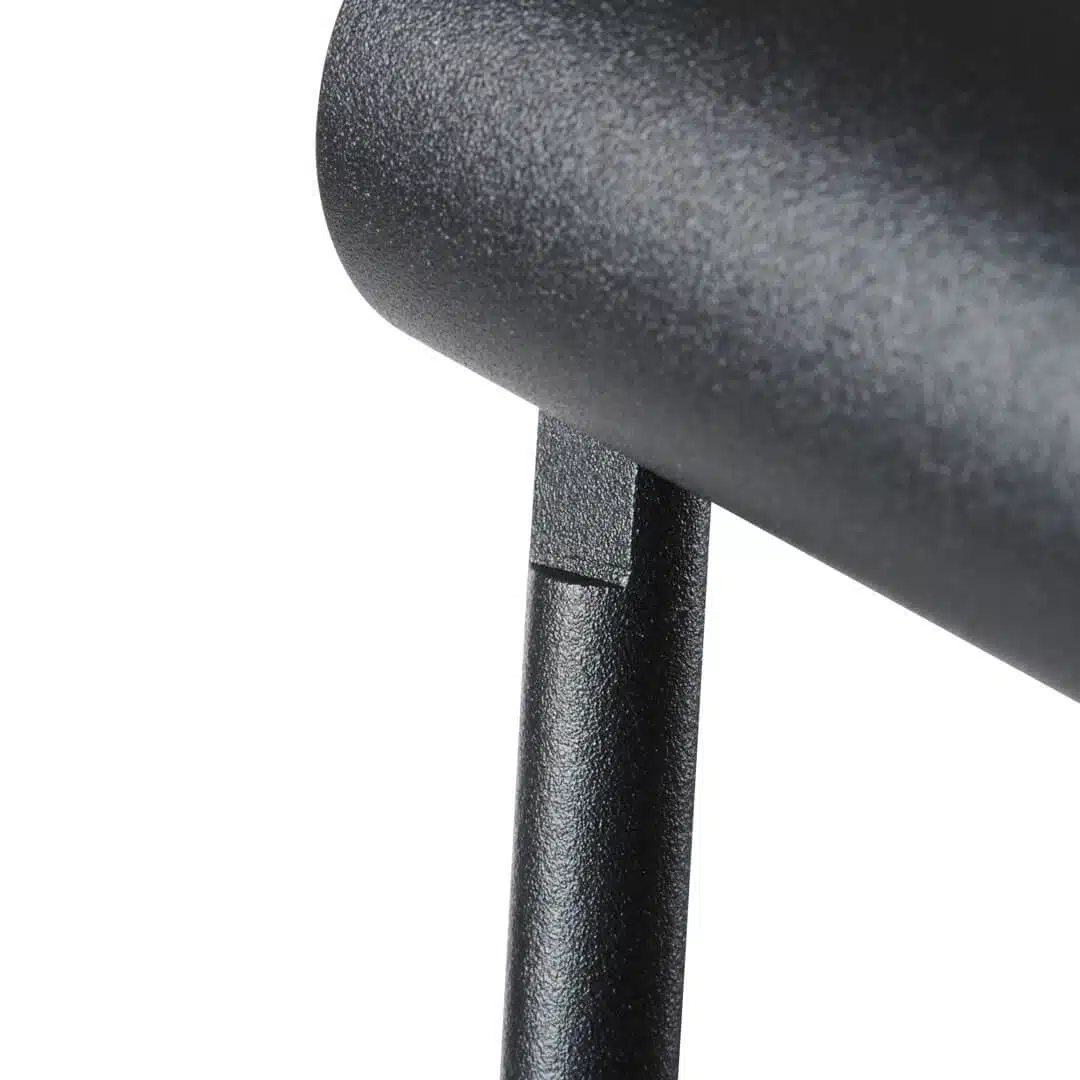

Atom pole is a minimalistic modular system. Its unique, flexible design and width range accessories makes the Atom pole system suitable both as a pole system and light bar. The Atom pole spot system is adjustable spotlight with jack stick adapter for tool-free installation on the 24V low voltage Atom pole track. The spots structure is based on aluminium. The aluminium gives the spotlight a very good passive dissipation, which provide a very long lifespan. Internal there is a DC/DC driver circuit with an integrated dimmable function. The swivel joints allow the spot to rotate 360° and tilted by 90°. The high efficiency optic, which is position deep in the spot, provide a high level of visual comfort and low glare.
Technical Specifications
Downloads
- Datasheet
- Specifications
- Drawings
- Installations manual
- BIM file
- IES file
- Datasheet
- Specifications
- Drawings
- Installations manual
- BIM file
- IES file
For further information
Please contact one of our agents for information regarding products, prices, delivery or if you have any questions
| Item no. | CCT | Color | Control | CRI | Dimension | lm-system | Optic | W-system | Luminous Efficiency (system value) | Adjustability | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5715174113276 | 4000K | White | Triac | 90 | φ30x60mm | 643lm | 36° | 6.8W | 95 | Rotatable & Tiltable | Aluminium |
| 5715174113252 | 4000K | Black | Triac | 90 | φ30x60mm | 643lm | 36° | 6.8W | 95 | Rotatable & Tiltable | Aluminium |
| 5715174113238 | 4000K | White | Triac | 90 | φ30x60mm | 634lm | 18° | 6.8W | 93 | Rotatable & Tiltable | Aluminium |
| 5715174113214 | 4000K | Black | Triac | 90 | φ30x60mm | 634lm | 18° | 6.8W | 93 | Rotatable & Tiltable | Aluminium |
| 5715174113191 | 3000K | White | Triac | 90 | φ30x60mm | 609lm | 36° | 6.8W | 90 | Rotatable & Tiltable | Aluminium |
| 5715174113177 | 3000K | Black | Triac | 90 | φ30x60mm | 609lm | 36° | 6.8W | 90 | Rotatable & Tiltable | Aluminium |
| 5715174113153 | 3000K | White | Triac | 90 | φ30x60mm | 601lm | 18° | 6.8W | 88 | Rotatable & Tiltable | Aluminium |
| 5715174113139 | 3000K | Black | Triac | 90 | φ30x60mm | 601lm | 18° | 6.8W | 88 | Rotatable & Tiltable | Aluminium |
| 5715174113115 | 2700K | White | Triac | 90 | φ30x60mm | 581lm | 36° | 6.8W | 85 | Rotatable & Tiltable | Aluminium |
| 5715174113092 | 2700K | Black | Triac | 90 | φ30x60mm | 581lm | 36° | 6.8W | 85 | Rotatable & Tiltable | Aluminium |
| 5715174113078 | 2700K | White | Triac | 90 | φ30x60mm | 574lm | 18° | 6.8W | 84 | Rotatable & Tiltable | Aluminium |
| 5715174113054 | 2700K | Black | Triac | 90 | φ30x60mm | 574lm | 18° | 6.8W | 84 | Rotatable & Tiltable | Aluminium |
(*) Estimated Delivery Times:
In Stock: 5-8 days.
Remote Stock: Air freight 7-10 days or shipping by sea 60 days.
Special Order: Production time 30 days + Air freight 7-10 days or shipping by sea 69 days.
